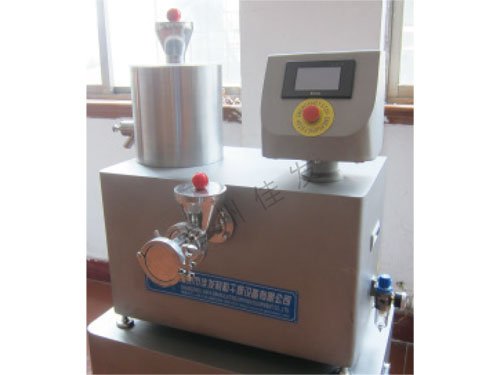

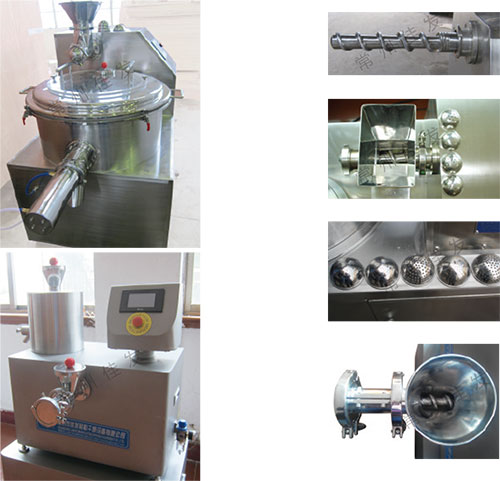

JW挤条-抛圆微丸机组
详细信息
应用概述 General of applications
★前道工序制好的湿材物料进行挤条─离心抛圆，完成制丸。
★To extrude and spheroidize the fore head process`s wet material on the centrifugal dish and the pellets can be got.
设备特点 Features of equipment
★挤条─抛圆在一台机器上完成。
★抛丸时，可洒入干粉，不易粘连。
★成丸表面致密，利于包衣。
★成丸粒径均匀，真球度高。
★Extruding—spheroidizing in one machine.
★No adhesive during spheroidizing as the power is acceded.
★The pellet has compact surface and easy for coating.
★The size distribution of pellet is narrow and high round.
规格 Specification 项目Item | 产量(kg/h) Capacity | 成丸直径(mm) Dia of pellet | 装机功率(kw) Power | 外形尺寸(mm) Overall Dimentions |
mini | 1～1.5 | 0.5～3.5 | 4.2 | 650x400x720 |
5 | 3～5 | 0.6～3.5 | 4.2 | 900x680x1100 |
10 | 5～10 | 0.6～3.5 | 8.6 | 1550x950x1350 |
30 | 10～30 | 0.6～3.5 | 17 | 1850x950x1400 |
所有参数仅作参考，视物料情况，本公司拥有变更权利，并不另行通知。
All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
